Filtration

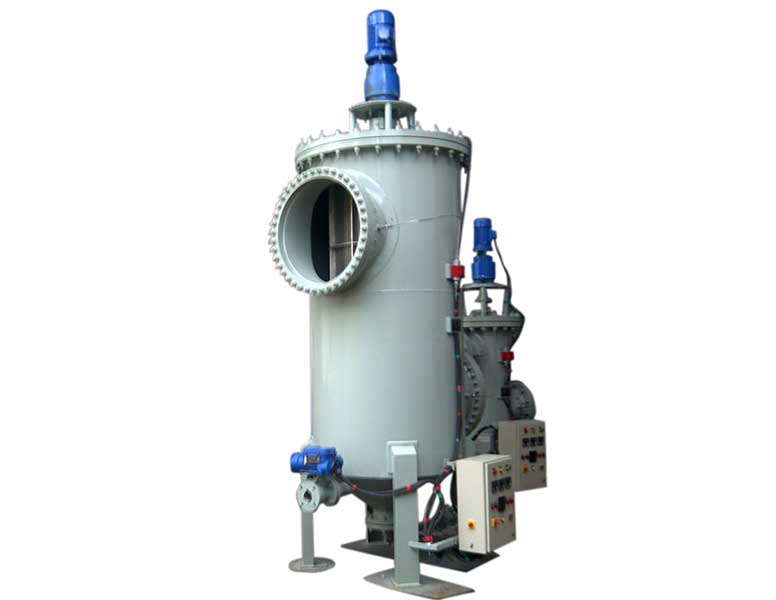

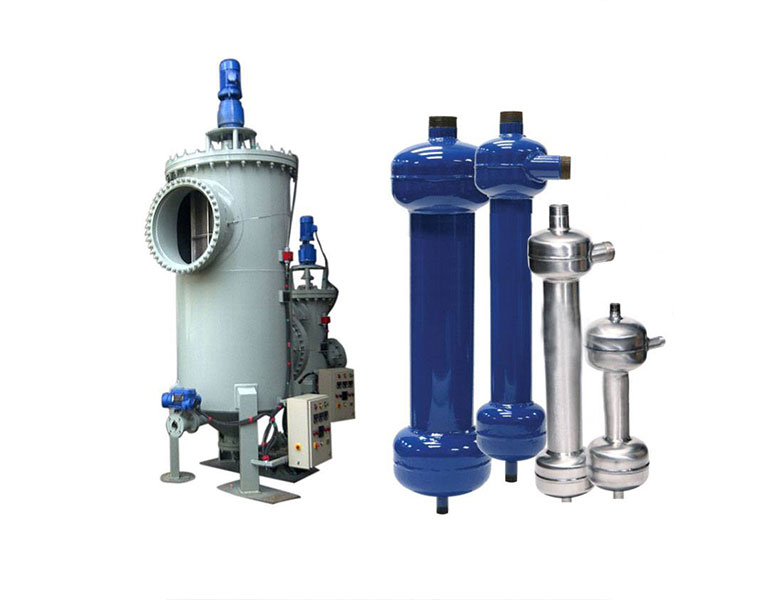

1) Auto Back wash Self Cleaning Filters

The automatic Back wash Self Cleaning filters are simplex basket filters installed with single or multiple elements depending on flow rates.

The back wash scanner is coupled with geared motor at one end and to the back wash pipe at the other end. The automation logic of these filters is mainly based on set differential pressure. When the Differential pressure reaches the set point the cleaning cycle is initiated. The geared motor rotates the back wash scanner & simultaneously the motorized backwash valve opens to the atmosphere.

The retained particles/solids on inside surface of element/s are back flushed through back wash scanner & back wash valve. The opening & closing of motorized backwash valve is synchronized with geared motor operation. The back wash cycle time can be set from 10 sec. to 30 minutes. Factory settings shall be 20 seconds to 45 seconds. Timer based automation logic is also additionally incorporated which is initiated at set interval of time. Factory settings shall be 12 Hrs. Degree of filtration offered is down to 50 microns.

Main Features and Advantages

  • Robust & User Friendly Design Minimizes Maintenance Cost.
  • Continuous Uninterrupted Down Stream Flow.
  • Large Filtration Area.
  • Low Pressure Drop- Energy Saving.
  • Provision for Pressure Gauges & D.P. Gauge at Inlet / Outlet Connections.

Applications

Water Intake, Raw/ Industrial Water, Cooling Water and Side Stream Water Filtration at Cooling Towers at:

  • Hydro & Thermal Power Plants
  • Steel Plants
  • Chemicals, Agro-Chemicals & Petro-Chemicals
  • Fertilizer Plants and many more ….

Specifications

Housing

Mild Steel, Carbon Steel, Austenitic Stainless Steel: SS304, SS304L, SS316, SS316L, SS Super Duplex and other Exotic Steel Materials /Equivalents. End Connections - up to 750 NB (30 Inches)

Element

Cylindrical Wedge Wire Slot tube type or Wire mesh type in Stainless Steel 304,304L,316,316L and other Exotic Steel Materials.
Mesh/Micron

Degree of filtration offered is down to 50 microns.

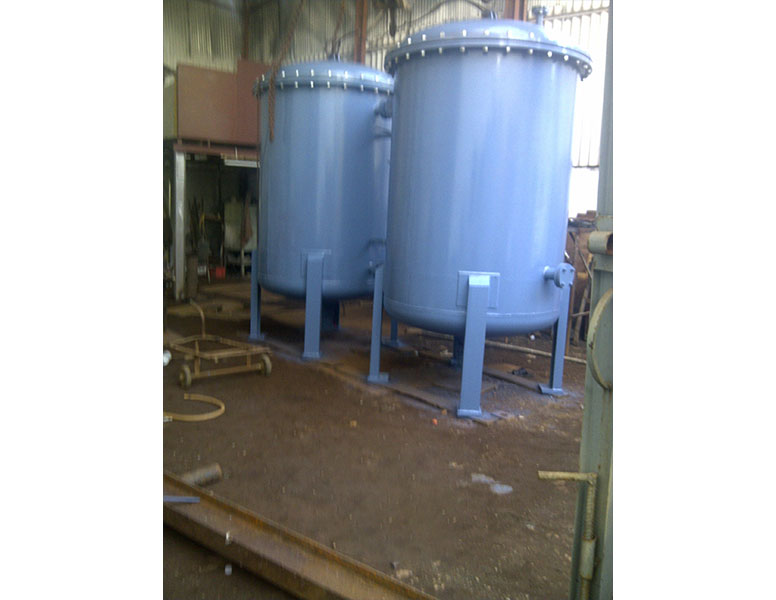

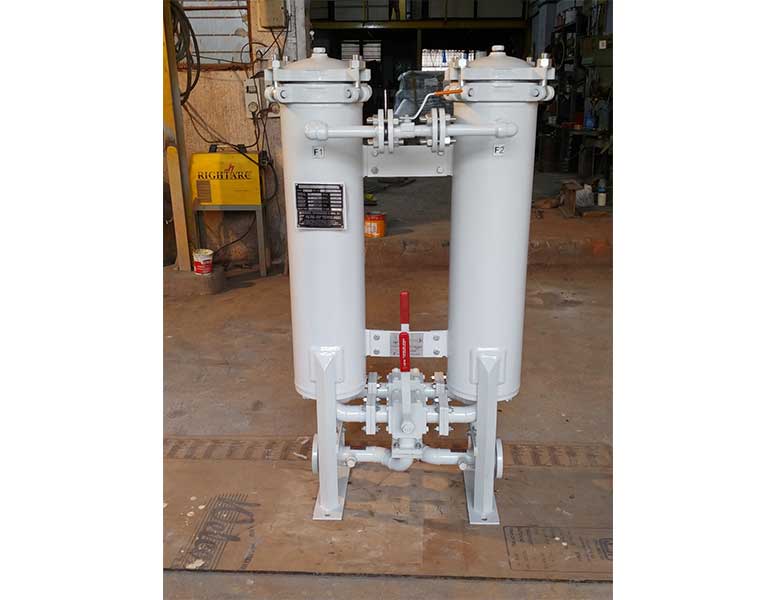

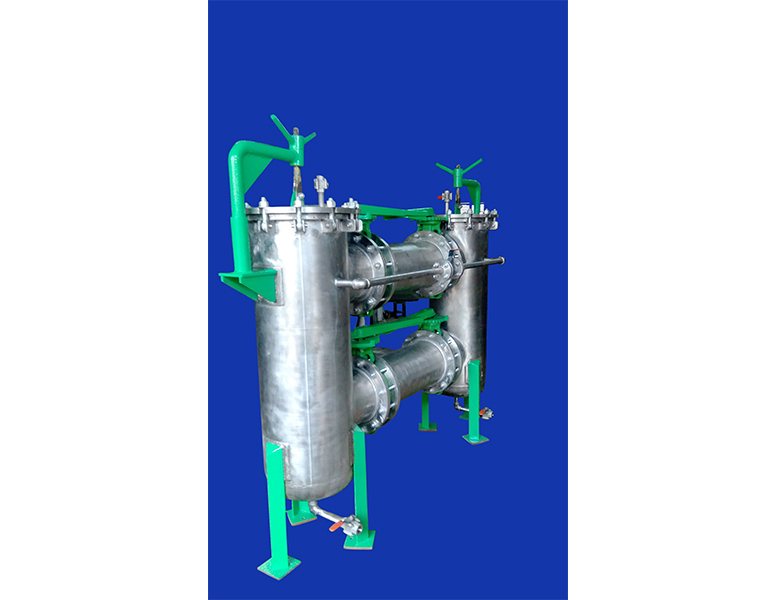

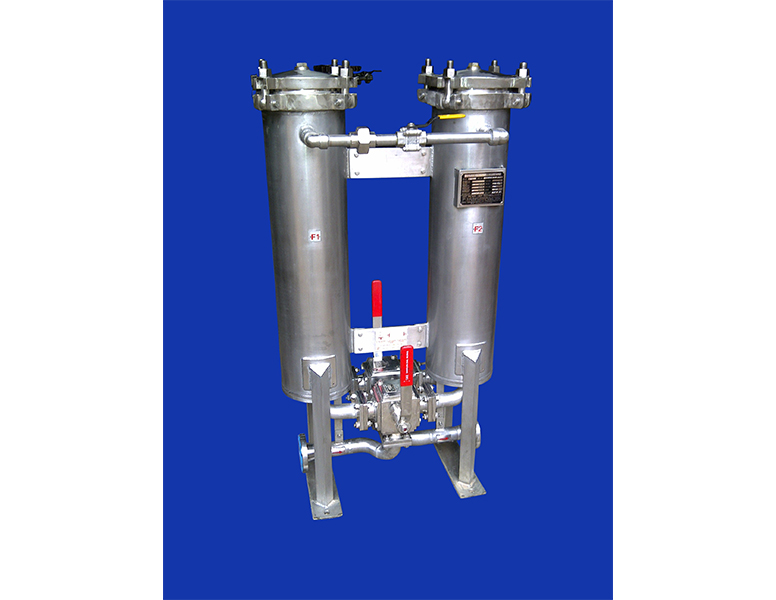

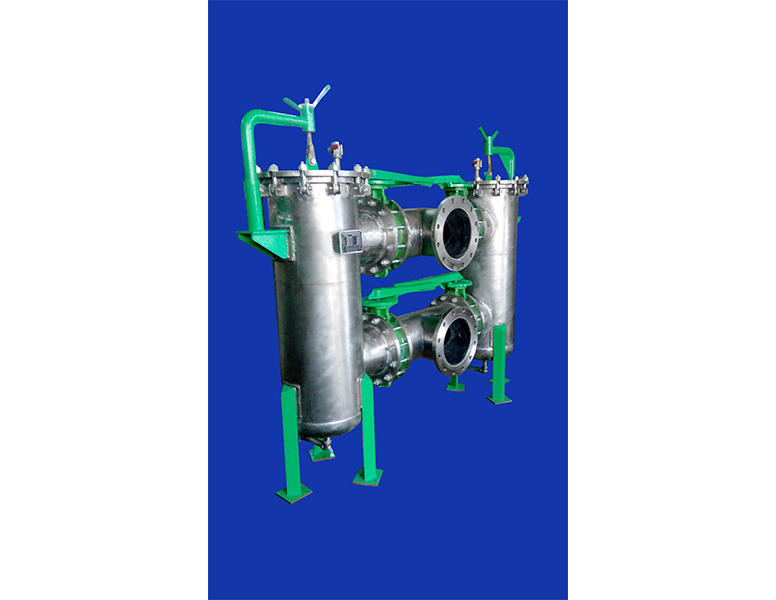

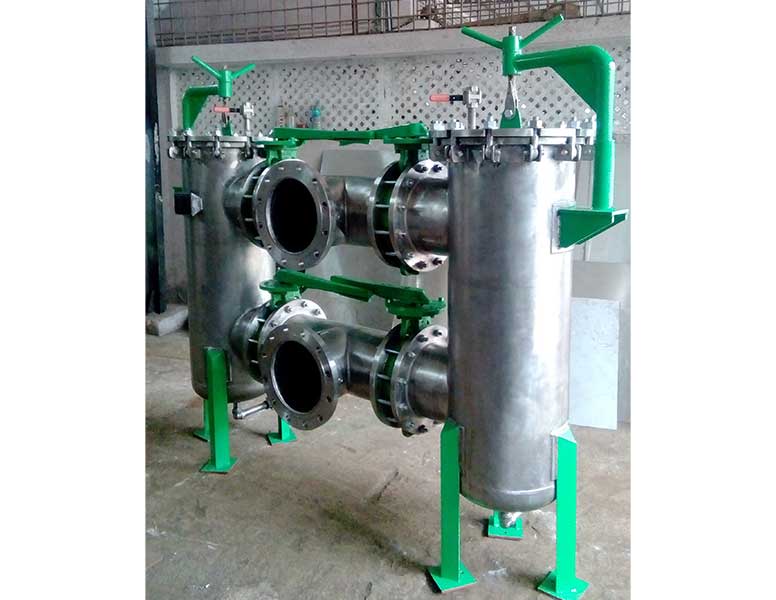

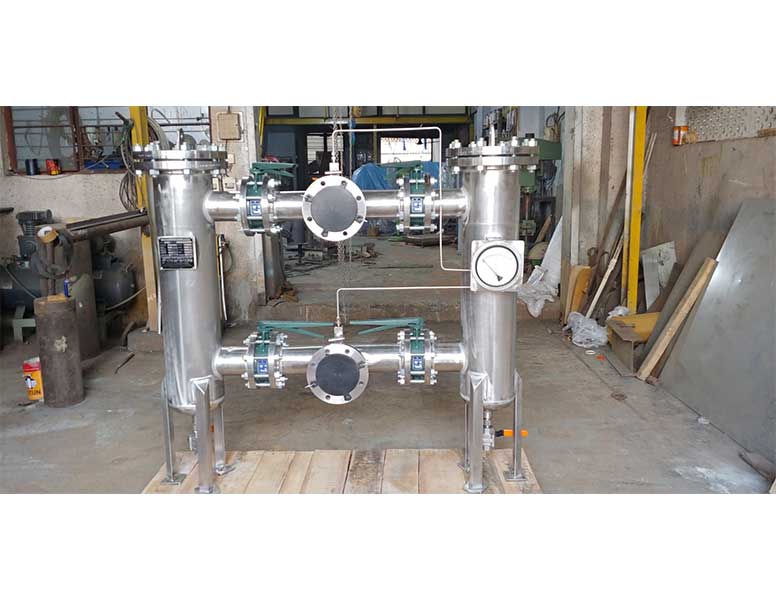

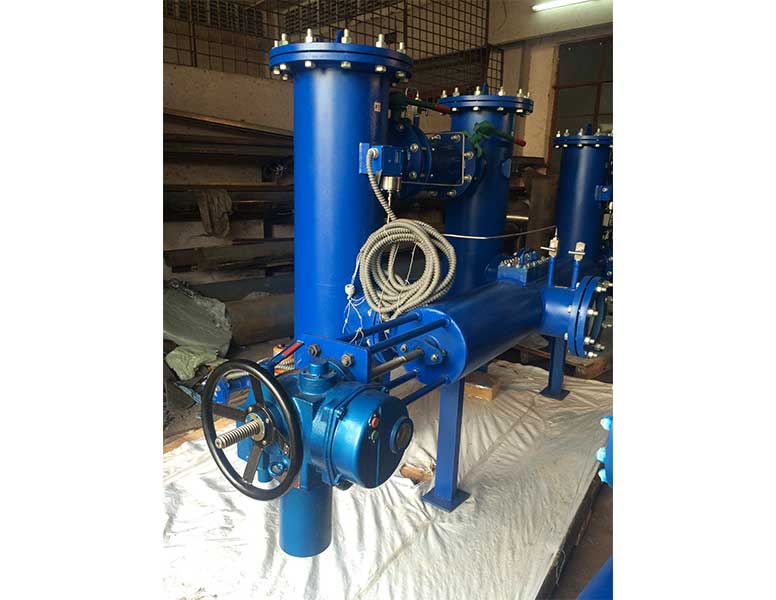

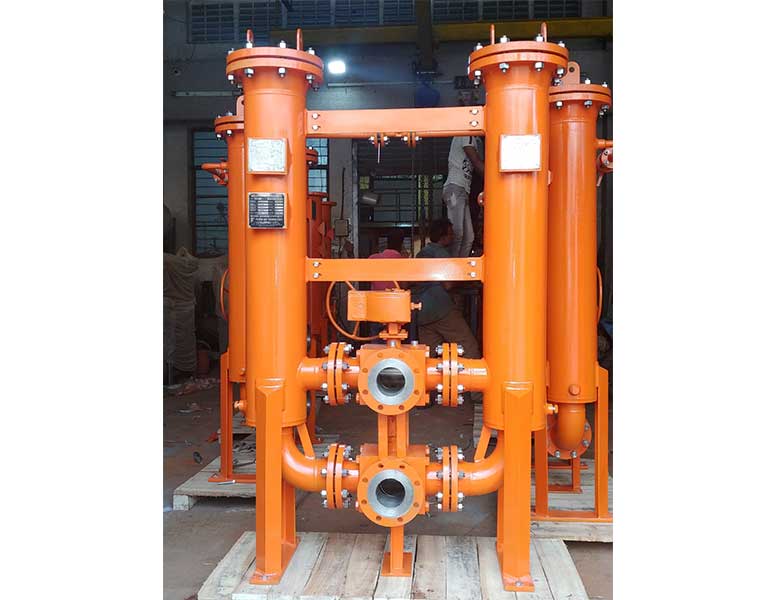

2) Duplex Filters (Auto back wash and Manual)

Filter-Sep Manufactures Super-Premium Quality Duplex Filters for various applications. Two simplex filters housings assembled together with common change over valves makes it a Duplex Filter. Duplex Filters are manufactured with 2 nos. individual 3-way ball valves for Inlet & Outlet Connections with single operating lever or with integrated 3-way L-Port six-way ball valves depending upon size of valve for easy operation.

Duplex filters are also Manufactured with common inlet chamber having disc valve & 02 Butterfly valves installed at inlet & outlet respectively. Duplex filters can be operated and backwashed Manually as well as automatically.

Main Features and Advantages

  • Robust Design
  • Continuous down stream flow.
  • Optimum Filtration Area. Low Pressure Drop across IN/OUT of Filter Housing.

Applications

Lube oils at various viscosities, Water intake, raw / industrial water, Cooling water and Side stream/On-line water Filtration at Cooling Towers at:

  • Oil & Gas/Refineries
  • Chemicals, Agro-Chemicals & Petro-Chemicals
  • Hydro & Thermal Power Plants
  • Steel Plants
  • Fertilizer Plants and many more ….

Specifications

Housing

Mild Steel, Carbon Steel, Austenitic Stainless Steel: SS304, SS304L, SS316, SS316L, SS Super Duplex and other Exotic Steel Materials /Equivalents. End Connections - up to 750 NB (30 Inches)

Element

Indigenously Made/Imported Cylindrical Wire mesh, Wedge Wire, Pleated Synthetic Cellulose etc.

Mesh/Micron

Degree of filtration offered is down to 1 micron.

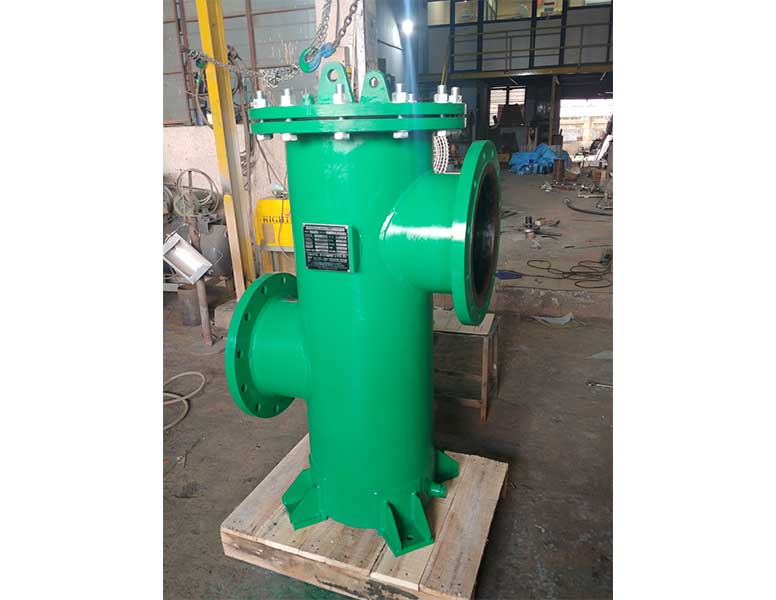

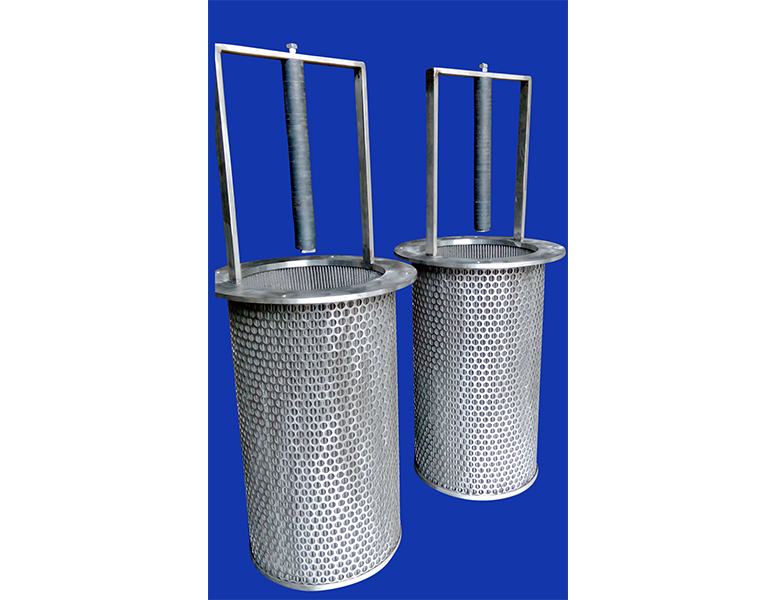

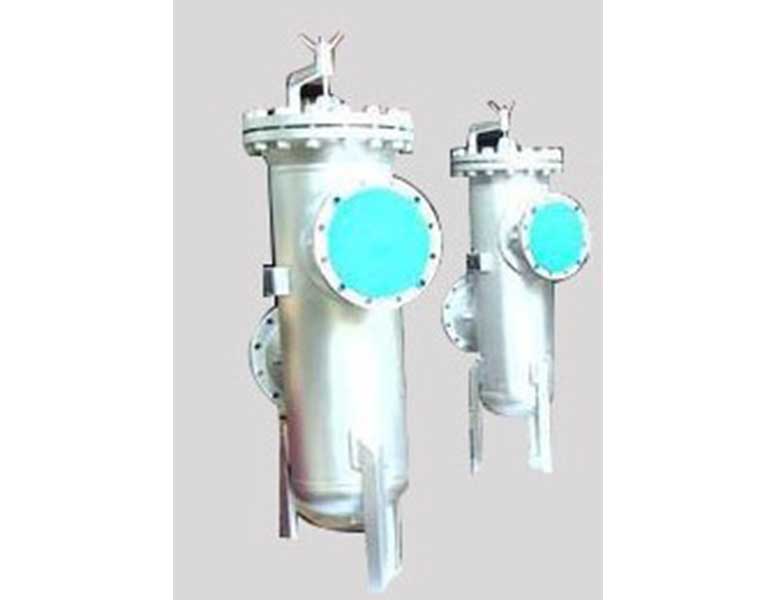

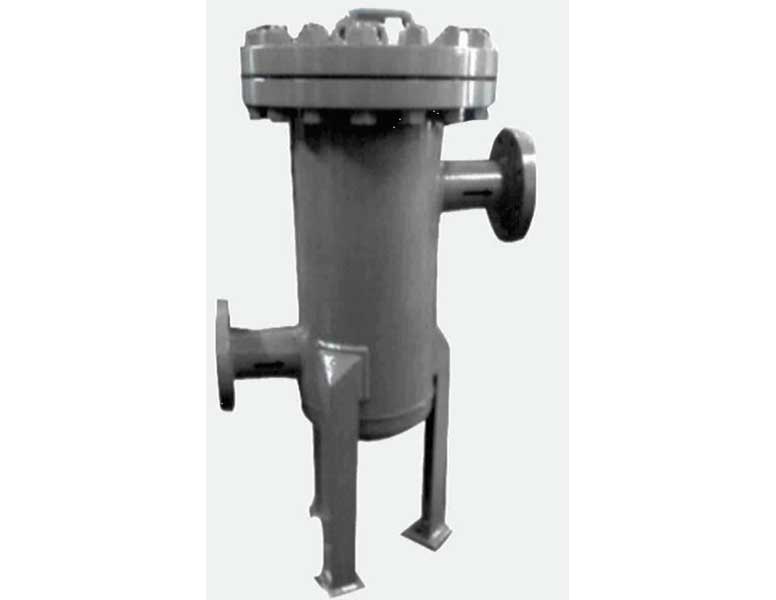

3) Simplex Basket Filter / Strainer

Simplex Basket Filters as a standard design have inline inlet / outlet nozzles. However the Offset design is also available based on applications. Simplex Basket Filters are offered along with Filter Elements having degree of filtration up to 10 micron absolute. These Filters are used for wide range of applications and depending on Customer specifications and requirements.

Simplex Basket Filters / Strainers are of coarser type with Degree of filtration up to 200 to 500 micron. Both Simplex Filters / Strainers have a separate bypass line to direct the flow when the Element / Strainer has to be cleaned etc. (and the flow is interrupted).

Applications

  • Power
  • Petrochemicals & Refineries
  • Steel
  • Textiles
  • Chemicals
  • Fertilizers

Specifications

Housing

Mild Steel, Carbon Steel, Stainless Steel: SS304, SS304L, SS316, SS316L, Hastelloy, Incoloy 825 / Equivalent, Super Duplex SS, Alloy Steel. End Connections - up to 600 NB
Element

Cylindrical Wire mesh type in Stainless Steel 304,304L,316, 316L. Also P.P,Nylon,PTFE etc
Mesh/Micron

Degree of filtration up to 500 micron and above. Up to 10 micron absolute for finer filtration and below if required

Separation

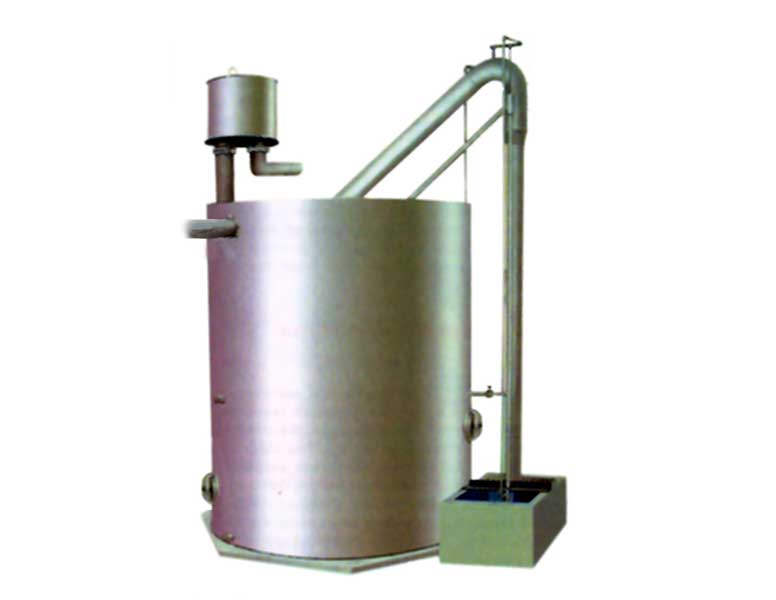

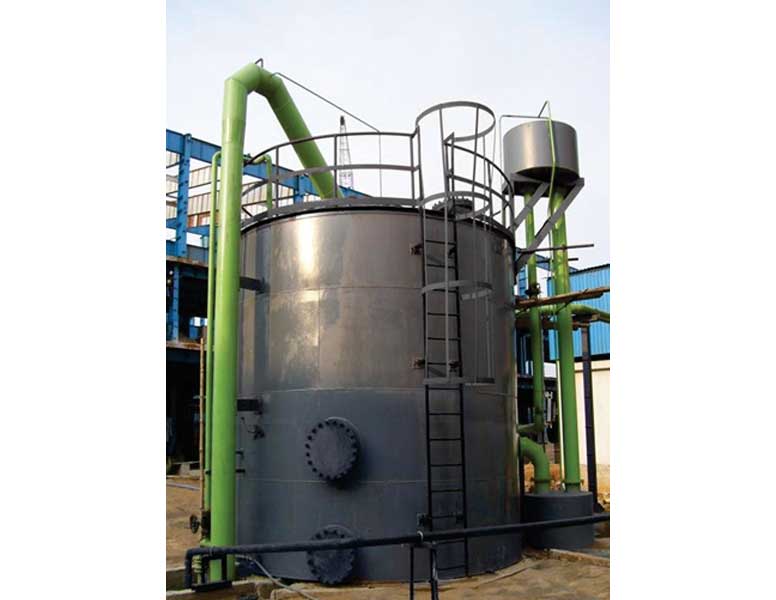

1) Automatic Valve less Gravity Filter

Main Features and Benefits

  • no moving parts
  • no backwash pumps required for operation
  • no electrical requirements required for operation
  • stores own reservoir of backwash water for backwashing purposes when required
  • operation so simple that filters can be “fitted and forgotten”
  • minimum sand loss or carryover occurs
  • with easy installation can easily be retrofitted to existing systems
  • no pressurised water required either gravity flow or low lift pumps to get feed to inlet tank
  • on cooling systems the recirculating line pressure can be used to feed the filter on a side-stream basis with no requirement for power whatsoever.
  • ideal for use in zoned hazardous areas
  • minimum maintenance and operator involvement
